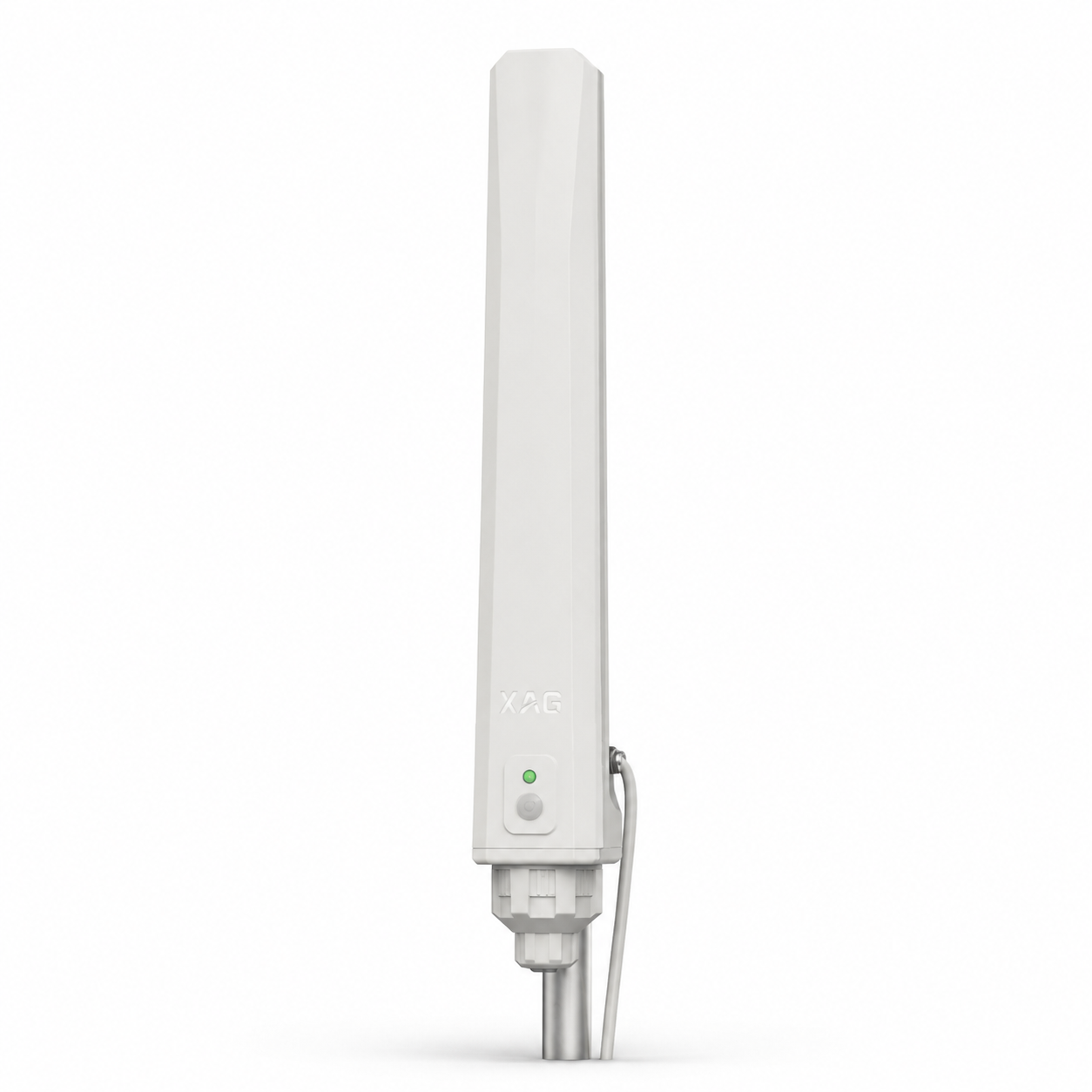

XAG FS2 Local Server
XAG FS2 Local Server is a local server designed for stable communication and equipment control in smart irrigation systems. The device enables interaction with electric valves, relays, and other system components via Bluetooth, Wi-Fi, and 4G.
It is suitable for agricultural use, irrigation automation, and water management across large areas.
Short Description
The XAG FS2 Local Server helps organize reliable wireless communication between irrigation system components. It supports connection with multiple valves, operates in different weather conditions, and provides stable data transmission at distances of up to 1000 meters when communicating with relays.
Key Advantages
- Supports Bluetooth, Wi-Fi, and 4G
- Communication with electric valves up to 300 m
- Communication with relays up to 1000 m
- Supports connection with up to 50 valves
- IP65 protection rating
- Operating temperature from -20 °C to 50 °C
- Type-C charging interface
- Compact body and lightweight design
| Section | Specification | Value |
|---|---|---|
| Basic Parameters | Dimensions | 598 mm (L) × 113 mm (W) × 139 mm (H) |
| Net Weight | 950 g | |
| Operating Voltage | 5 VDC / 12 VDC | |
| Operating Temperature | -20 °C ~ 50 °C | |
| Storage Temperature | -40 °C ~ 85 °C | |
| Wind Resistance | Grade 8 | |
| Protection Rating | IP65 | |
| Charging Interface | Type-C, 5V/2A or 12V/1A | |
| Communication Methods | Bluetooth / Wi-Fi / 4G | |
| Average Power Consumption | 2 W (with 50 valves connected) | |
| Communication Range | Bluetooth: 10 m Wi-Fi: Communication with Electric Valves: ≤ 300 m (Local Server height: 4 m, Electric Valve height: 60 cm) Communication with Relays: ≤ 1000 m (Local Server height: 4 m, Relay height: 4 m) |
|
| 4G Data Card | SIM card to be provided by the user | |
| XAG FR2 Wireless Relay | Dimensions | 440.0 mm (L) × 73.0 mm (W) × 62.5 mm (H) |
| Net Weight | 380 g | |
| Operating Voltage | 5 VDC | |
| Operating Temperature | -20 °C ~ 50 °C | |
| Storage Temperature | -40 °C ~ 85 °C | |
| Wind Resistance | Grade 8 | |
| Protection Rating | IP65 | |
| Charging Interface | Type-C, 5V/1A | |
| Communication Methods | Bluetooth / Wi-Fi | |
| Average Power Consumption | 0.5 W | |
| Communication Range | Bluetooth: 10 m Wi-Fi: Communication with Electric Valves: ≤ 300 m Communication with Local Server & Repeaters: ≤ 1000 m |
